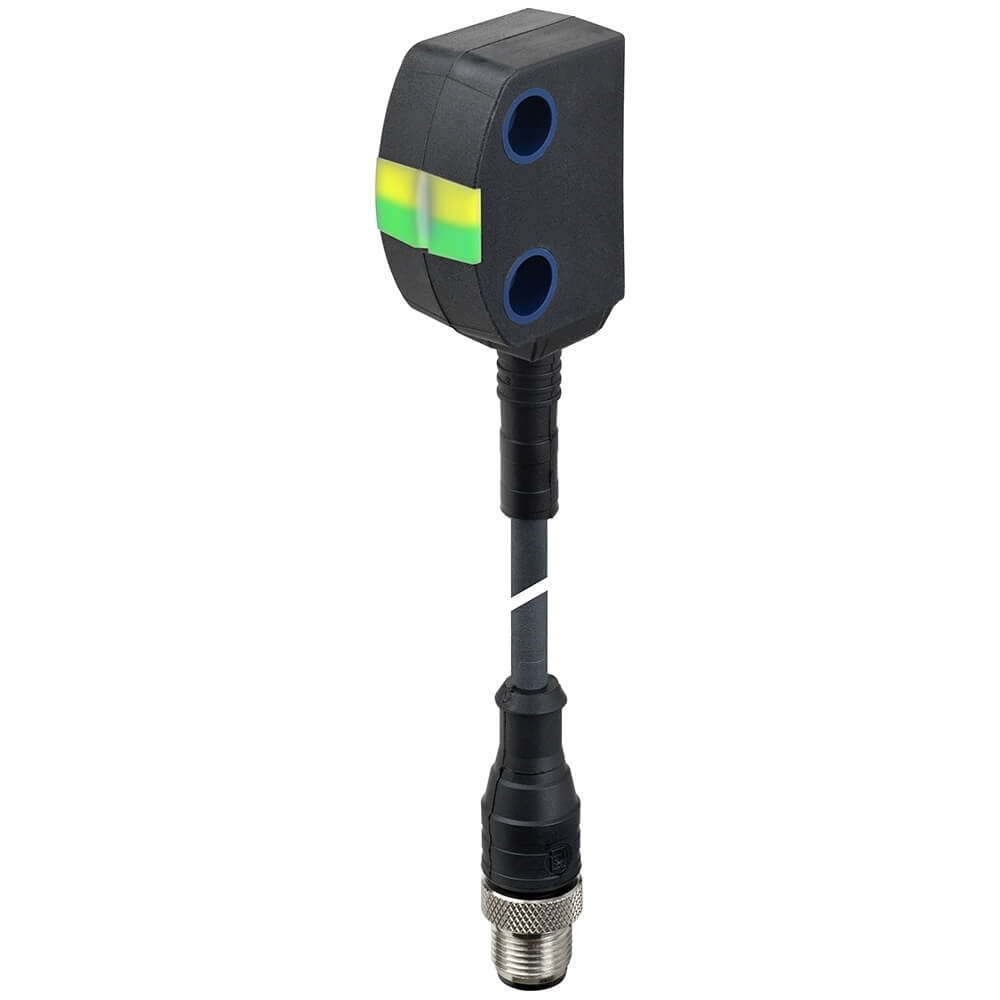

D41D-2CD-025N2 Omron

D41D-2CD-025N2

Нет в наличии

Уточнить цену

D41D-2CD-025N2

Уточнить цену

enPDF 847,3 КБ

Нет в наличии

Уточнить цену

Описание

Coding	Unique
Connection method	M12 pigtail connector
Degree of protection (IP)	IP65/IP67
Diagnostic LED
Door contacts NC	2
Door contacts NO	1
Door switch type	Non-contact, RFID coded
Guard-lock
High coding level
With LED indicator
Material housing	PBT
Number of auxiliary outputs	1
Auxiliary monitoring output	PNP type, short-circuit proof
Cable exit direction	Bottom
LED indicators	Actuator detected (yellow)
Make before break
Max. differential travel	20 %
Max. operating distance ON to OFF	18 mm
Min. operating distance OFF to ON	10 mm
Mounting method	M4 screws
Number of connectable switches	30 max. (wiring length: 100 m max.)
Number of OSSD	2
Output test pulses
Output type	PNP
Shape	Rectangular compact
Switch without actuator
Teaching limitation
Vibration resistance	10 to 55 Hz, amplitude 1.0 mm
