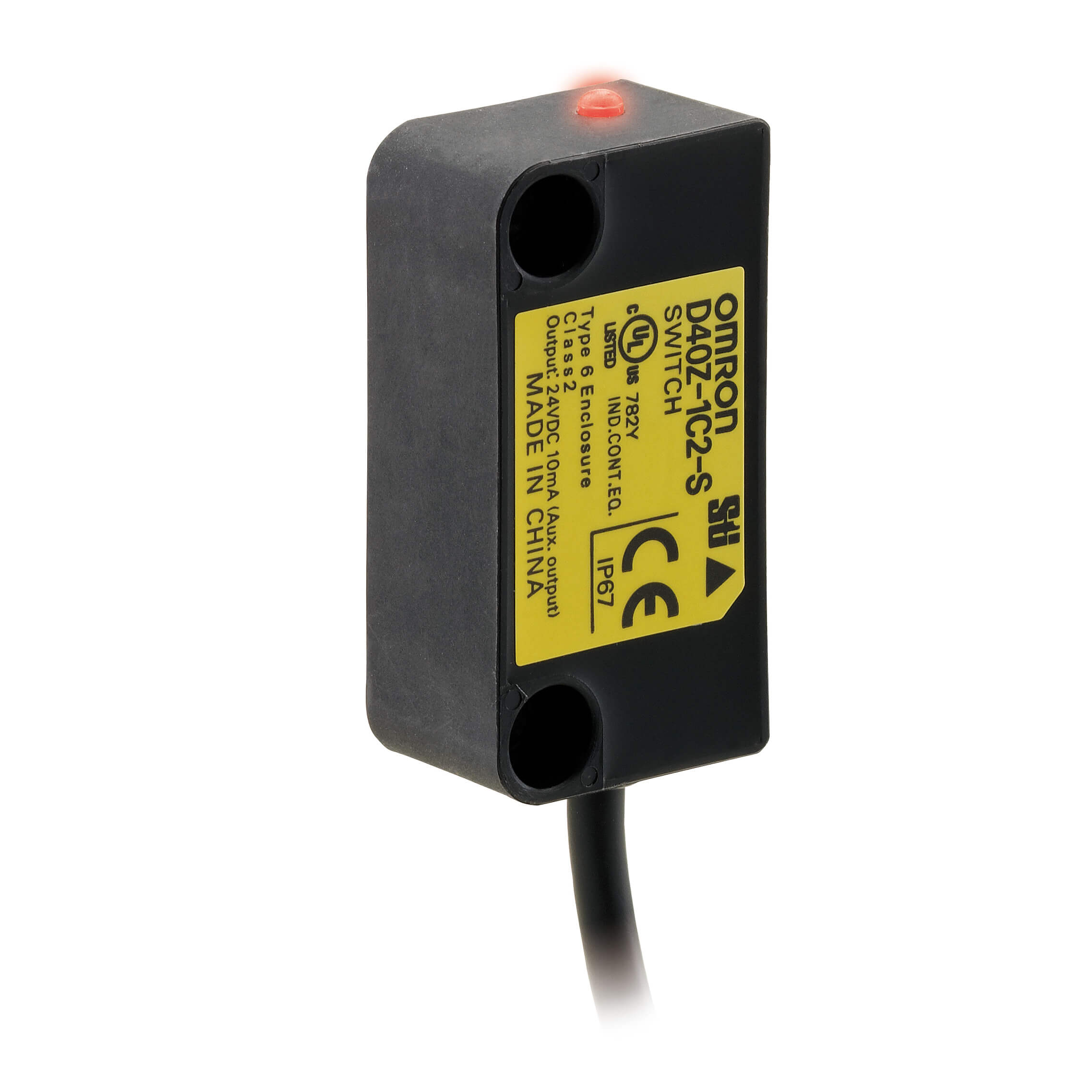

D40Z-1C5-S Omron

D40Z-1C5-S

Нет в наличии

Уточнить цену

D40Z-1C5-S

Уточнить цену

Дверной выключатель безопасн. бесконтактный, 1НО, кабель 5м, только выключатель

Нет в наличии

Уточнить цену

Описание

Switch without actuator
Min. operating distance OFF to ON	5 mm
Max. operating distance ON to OFF	15 mm
Max. differential travel	20 %
Ambient temperature (operating)	-10-65 °C
Vibration resistance	10 to 55 to 10 Hz (single amplitude: 0.75 mm, double amplitude: 1.5 mm)
Min. shock resistance	300 m/s²
Degree of protection (IP)	IP67
Material housing	PBT
Mounting method	M4 screws
Max. power consumption	0.5 W
Auxiliary monitoring output	Photocoupler output: 24 V DC, load current: 10 mA
LED indicators	Actuator detected (yellow), Actuator not detected (red)
Cable length	5 m
Number of connectable switches	30 max. (wiring length: 100 m max.)
